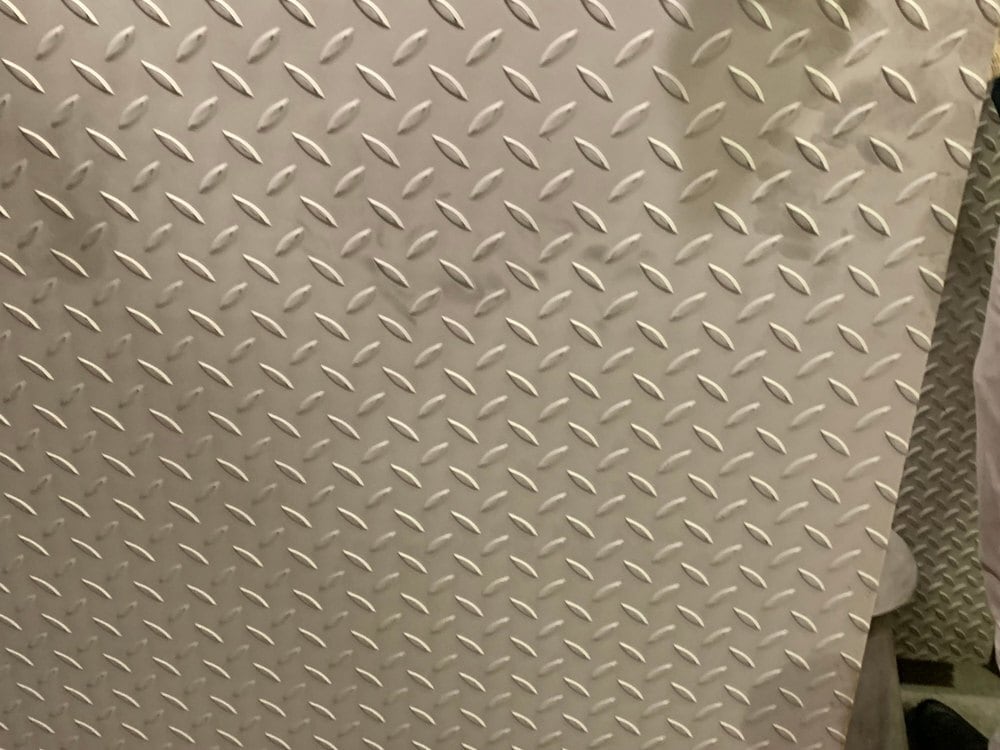

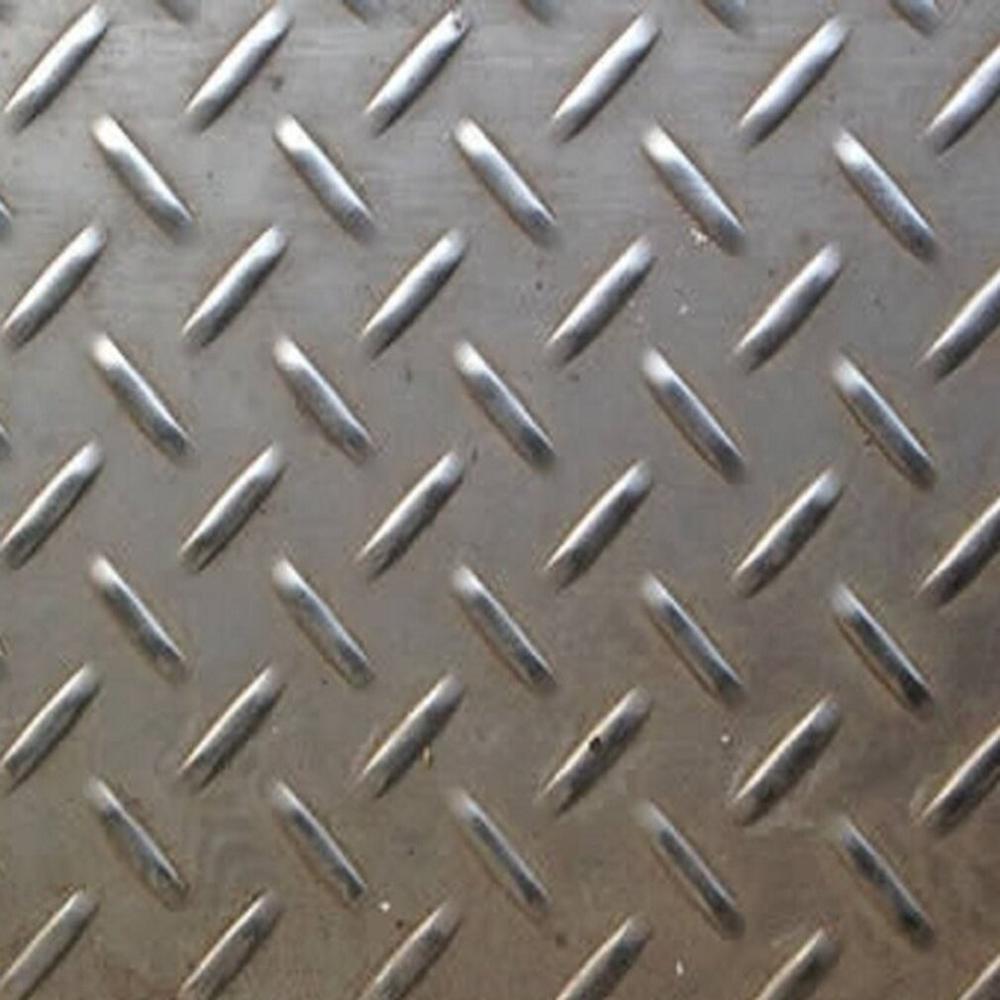

Stainless Steel 304 Chequered Plates

Stainless Steel 304 Chequered Plates About

Stainless Steel 304 Chequered Plates manufacturer & supplier in India. JINDAT STEEL UDYOG PVT LTD offers durable, corrosion-resistant stainless steel plates.

• Stainless Steel 304 Checker Plate Exporter

• Anti-Skid SS 304 Chequered Plate

•


• Stainless Steel 304 Chequered plate manufacturer in India

• Buy stainless steel 304 checker plates

• Stainless Steel 304 Chequered Plate for flooring and industrial use

• Stainless Steel 304 Chequered Plate supplier Jindat Steel Udyog Pvt Ltd

•


• Stainless Steel 304 Chequered Plate for flooring

• Stainless Steel 304 Chequered Plate for staircases

• Stainless Steel 304 Chequered Platefor walkways

• Stainless Steel 304 Chequered Plate for industries

•


• Chemical Composition SS 304 Stainless Steel Chequered Plate

  (Typical composition, % by weight as per ASTM A240 / IS 6911)

  Element	Composition (%)
  Carbon (C)	Max 0.08
  Chromium (Cr)	18 20
  Nickel (Ni)	8 10.5
  Manganese (Mn)	Max 2.0
  Silicon (Si)	Max 1.0
  Phosphorus (P)	Max 0.045
  Sulfur (S)	Max 0.03
  Iron (Fe)	Balance

  Provides excellent corrosion resistance, strength, and durability in industrial and architectural applications.

  ---

  Mechanical Properties SS 304 Chequered Plate

  Property	Requirement
  Tensile Strength	515 720 MPa
  Yield Strength	205 MPa
  Elongation	40%
  Hardness	187 HB (Brinell)

  ---

  Standard Plate Sizes (Reference)

  • Thickness: 1.5 mm to 12 mm (custom thickness available)

  • Width: 1250 to 1500 mm (typical)

  • Length: Up to 6000 mm (custom cut length available)

  ---

  Typical Applications

  • Industrial flooring, stair treads, and ramps

  • Anti-slip walkways & platforms

  • Decorative architectural panels

  • Kitchen equipment, food processing plants

  • Chemical and marine environments

  ---

  Supplier Information

  Manufacturer & Supplier:
  JINDAT STEEL UDYOG PVT LTD

  • Premium SS 304 chequered plates

  • Mill Test Certificate as per ASTM / IS standards

  • Domestic & export supply

Superior Corrosion Resistance

Stainless Steel 304 Chequered Plates offer outstanding corrosion resistance due to their high chromium and nickel content. This makes them suitable for both indoor and outdoor applications, even in harsh or moisture-prone environments. Their robust composition provides long-term reliability and maintains surface aesthetics.


Versatile Applications

These chequered plates are commonly used for flooring, ramps, industrial walkways, and platforms thanks to their anti-slip properties and sturdy construction. Their customizable dimensions and thickness make them adaptable to various sectors including industrial, commercial, automotive, and construction.


Environmentally Friendly and Recyclable

The plates are fully recyclable, supporting sustainable construction and industrial practices. Made from Stainless Steel 304, they can be reused and repurposed, reducing environmental impact and conserving natural resources without compromising on quality or performance.
