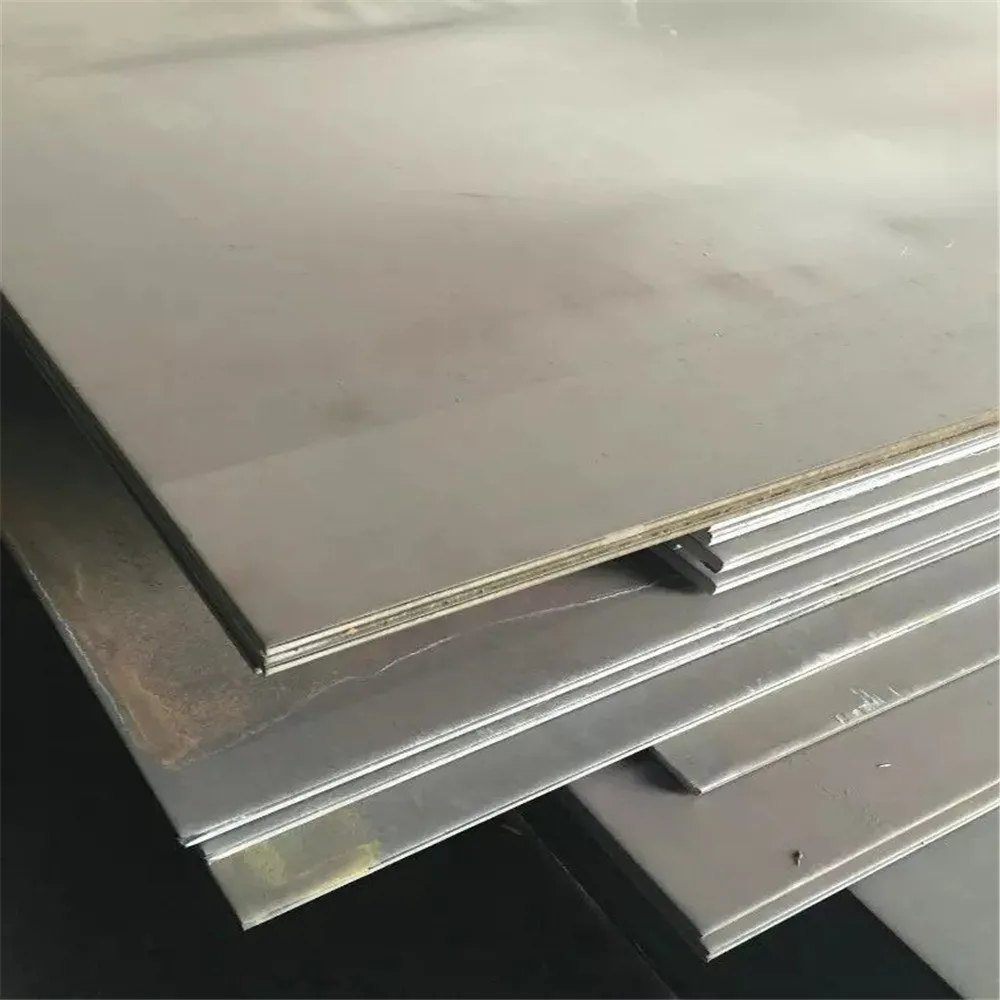

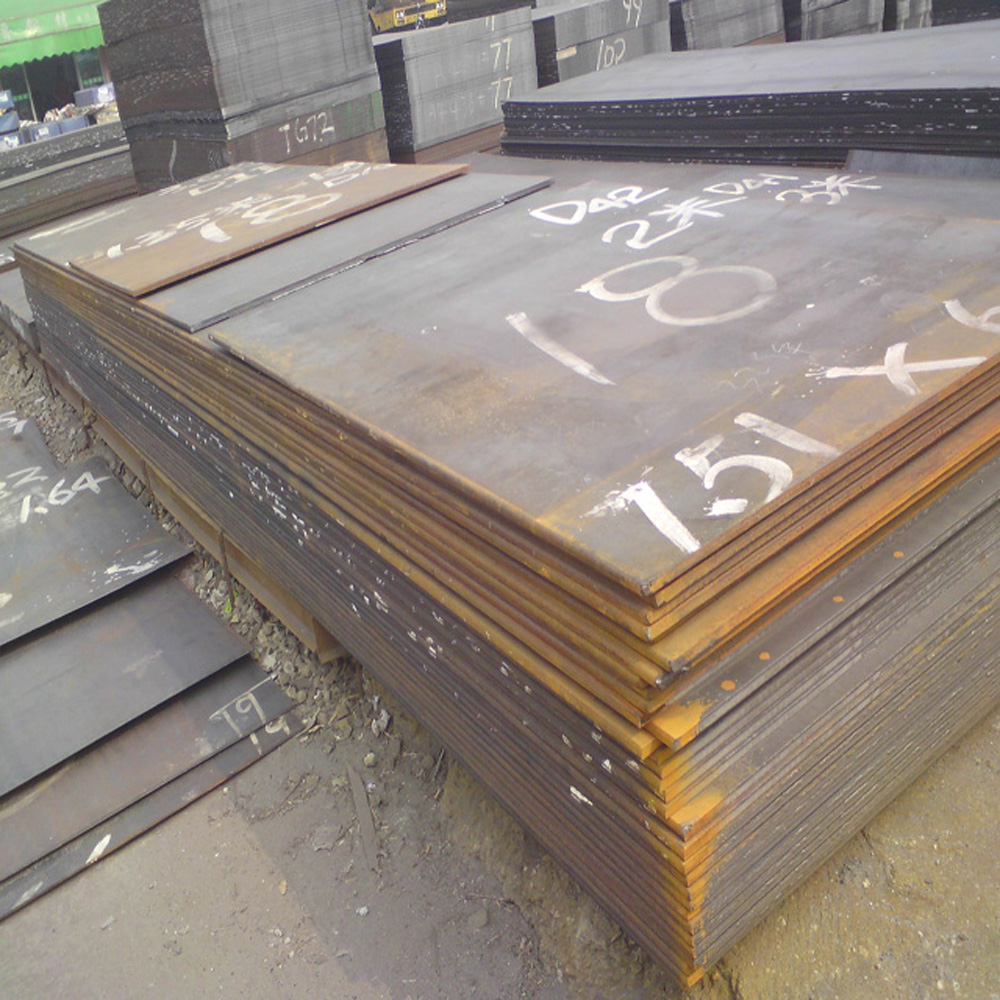

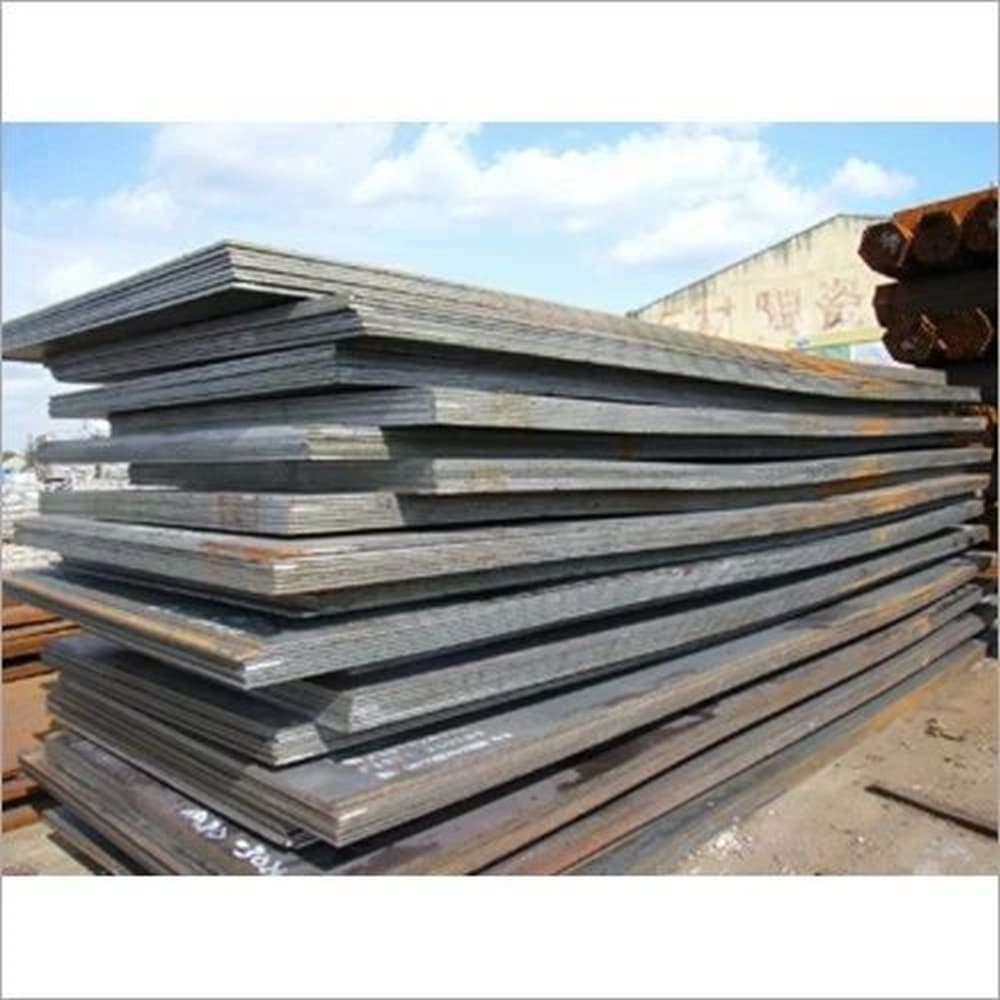

IS 2041 R260 Boiler Quality Plates

Name: IS 2041 R260 Boiler Quality Plates
Brand: JINDAT STEEL UDYOG PRIVATE LIMITED
Price: 64.0 INR
Availability: InStock

Price 64.0 INR/ Piece

Get a Price/Quote

MOQ : 500 Kilograms

IS 2041 R260 Boiler Quality Plates Specification

Material Composition %
Carbon (C) Max 0.23 Manganese (Mn) 0.90 1.50 Phosphorus (P) Max 0.035 Sulfur (S) Max 0.035 Silicon (Si) 0.15 0.35

Product Name
Other

Steel Type
Carbon Steel

Steel Product Type
Steel Plates

Grade
Chemical Composition IS 2041 R260 (Heat analysis, % by weight as per IS 2041) Element Composition (%) Carbon (C) Max 0.23 Manganese (Mn) 0.90 1.50 Phosphorus (P) Max 0.035 Sulfur (S) Max 0.035 Silicon (Si) 0.15 0.35 Controlled carbon and manganese ensure good weldability and strength for boiler applications. Mechanical Properties IS 2041 R260 Property Requirement Tensile Strength 410 540 MPa Yield Strength 260 MPa (min) Elongation 23% min

Shape
Plate

Steel Standard
Other

Composition
Carbon (C) Max 0.23 Manganese (Mn) 0.90 1.50 Phosphorus (P) Max 0.035 Sulfur (S) Max 0.035 Silicon (Si) 0.15 0.35

Application
Other

Dimension (L*W*H)
6 Meter (m)

Weight
980 Kilograms (kg)

Material Grade
Chemical Composition IS 2041 R260 (Heat analysis, % by weight as per IS 2041) Element Composition (%) Carbon (C) Max 0.23 Manganese (Mn) 0.90 1.50 Phosphorus (P) Max 0.035 Sulfur (S) Max 0.035 Silicon (Si) 0.15 0.35 Controlled carbon and manganese ensure good weldability and strength for boiler applications. Mechanical Properties IS 2041 R260 Property Requirement Tensile Strength 410 540 MPa Yield Strength 260 MPa (min) Elongation 23% min

IS 2041 R260 Boiler Quality Plates Trade Information

Minimum Order Quantity
500 Kilograms

Delivery Time
1 Days

IS 2041 R260 Boiler Quality Plates About

IS 2041 R260 Boiler Quality Plates from JINDAT STEEL UDYOG PVT LTD. Ideal for boilers, pressure vessels & heat exchangers.

IS 2041 R260 Boiler Quality Plates manufacturer & supplier in India. JINDAT STEEL UDYOG PVT LTD offers high-strength pressure vessel plates.

IS 2041 R260 Boiler Quality Plates are carbon steel plates specially designed for boilers, pressure vessels, and high-temperature service applications. These plates offer excellent strength, durability, and resistance to pressure and temperature variations.

JINDAT STEEL UDYOG PVT LTD is a trusted manufacturer and supplier of IS 2041 R260 Boiler Quality Plates, supplying high-quality plates that conform to Indian Standards. Our R260 plates are widely used in thermal power plants, refineries, petrochemical industries, boilers, and heat exchangers.

Manufactured with strict quality control and tested as per IS norms, IS 2041 R260 plates ensure reliable performance and long service life in critical pressure applications.

IS 2041 R260 Boiler Quality Plates
IS 2041 R260 Boiler Steel Plates

IS 2041 R260 Pressure Vessel Plates
IS 2041 R260 Plate Manufacturer
IS 2041 R260 Plate Supplier in India
Boiler Quality Steel Plates IS 2041 R260

IS 2041 R260 Carbon Steel Plates
IS 2041 R260 boiler quality plates manufacturer in India
Buy IS 2041 R260 boiler steel plates
IS 2041 R260 plates for boilers and pressure vessels

IS 2041 R260 boiler plates supplier Jindat Steel Udyog Pvt Ltd
IS 2041 R260 plates for boilers
IS 2041 R260 plates for pressure vessels
IS 2041 R260 plates for heat exchangers

IS 2041 R260 plates for thermal power plants
USAGES
Designed for boiler & pressure vessel applications
Excellent tensile & yield strength
Good weldability & formability
Suitable for high-temperature service

IS standard compliance

Chemical Composition IS 2041 R260

(Heat analysis, % by weight as per IS 2041)

Element	Composition (%)
Carbon (C)	Max 0.23
Manganese (Mn)	0.90 1.50
Phosphorus (P)	Max 0.035
Sulfur (S)	Max 0.035
Silicon (Si)	0.15 0.35

Controlled carbon and manganese ensure good weldability and strength for boiler applications.

Mechanical Properties IS 2041 R260

Property	Requirement
Tensile Strength	410 540 MPa
Yield Strength	260 MPa (min)
Elongation	23% min

Superior Quality and Consistency

The IS 2041 R260 Boiler Quality Plates are crafted to meet stringent chemical and mechanical specifications set by IS 2041 standards. Every plate undergoes heat analysis and controlled processing, resulting in optimal strength, ductility, and weldability. These attributes make them dependable components for constructing boilers and pressure vessels that must perform reliably under demanding conditions.

Weldability and Mechanical Excellence

A carefully balanced carbon and manganese content enhances these plates' weldability without compromising their mechanical integrity. The impressive tensile and yield strengths, combined with excellent elongation, ensure that the plates can endure thermal stresses and pressure cycles commonly found in boiler applications. This makes them a preferred choice for installers and engineers.

FAQ's of IS 2041 R260 Boiler Quality Plates:

Q: How are IS 2041 R260 Boiler Quality Plates used in industrial applications?

A: IS 2041 R260 Boiler Quality Plates are primarily used in the fabrication of boilers and pressure vessels in the power, oil and gas, and chemical industries. Their mechanical strength and resistance to high pressure make them ideal for critical applications where safety and durability are paramount.

Q: What benefits does the controlled chemical composition provide?

A: The controlled levels of carbon, manganese, phosphorus, sulfur, and silicon provide a balanced combination of weldability, strength, and ductility. This ensures the plates can be easily fabricated and joined without compromising their structural performance in high-pressure scenarios.

Q: When is the IS 2041 R260 grade recommended over other grades?

A: The IS 2041 R260 grade is recommended when you need plates that comply with Indian standards for boiler quality, especially in situations requiring reliable weldability, moderate tensile strength, and good elongation. It is particularly advantageous for medium-to-high pressure boiler fabrication.

Q: Where are these boiler plates typically sourced or supplied in India?

A: IS 2041 R260 Boiler Quality Plates are widely available through reputable importers, manufacturers, and suppliers across India, catering mainly to industries requiring certified boiler and pressure vessel materials, such as energy plants and industrial fabrication units.

Q: What is the process for manufacturing IS 2041 R260 Boiler Quality Plates?

A: These plates are manufactured through a controlled process involving hot rolling, heat analysis, and quality inspections to ensure they meet the specified chemical and mechanical standards of IS 2041 R260, guaranteeing consistent performance.

Q: How does the mechanical property of 23% minimum elongation benefit users?

A: A minimum elongation of 23% provides the plate with superior ductility, allowing it to withstand deformation and expansion during thermal cycles or pressure fluctuations in boiler operations, reducing the risk of cracking or failure.
