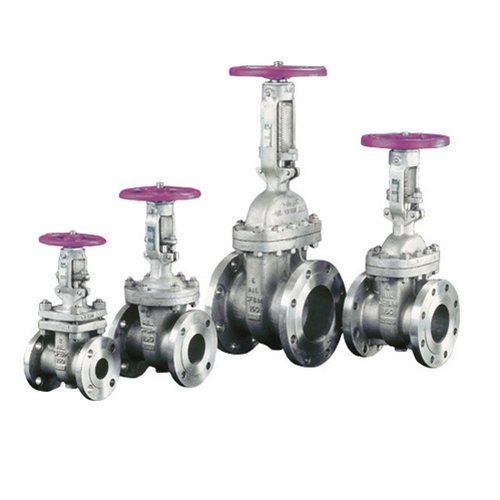

L&T MAKE SS GATE VALVE CS - CI

Name: L&T MAKE SS GATE VALVE CS - CI
Brand: JINDAT STEEL UDYOG PRIVATE LIMITED
Price: 2850 INR
Availability: InStock

Price 2850 INR/ Unit

Get a Price/Quote

MOQ : 5 Units

L&T MAKE SS GATE VALVE CS - CI Specification

Chemical Composition
Stainless Steel SS304/SS316 (Body), Carbon Steel/ Cast Iron (Bonnet and other parts)

Width
Varies as per valve size (15mm to 300mm)

Corrosion Resistant
Yes, Excellent

Size
15mm to 300mm and above

Diameter
Varies (15mm to 300mm and above)

Hardness
187 HB (Typical for SS304)

Coating Type
Shot blasted; painted/epoxy coated for CI/CS parts externally

Heat Resistance
Yes

Material Composition %
Cr: 18-20%, Ni: 8-10% (for SS304), rest as per grade standard

Product Form
Flanged End/Socket Weld

Temper
Annealed/Standard for industrial application

Tensile Strength
Up to 515 MPa (depends on grade)

Recyclable
Yes

Product Name
L&T MAKE SS GATE VALVE CS - CI

Steel Type
Stainless Steel (Body), Carbon Steel/Cast Iron (Bonnet)

Steel Product Type
Valve - Gate Type

Grade
SS304/SS316, CS, CI

Thickness
As per valve pressure rating and size

Shape
Gate Valve

Steel Standard
ASTM A351 (for SS), A216 (for CI/CS)

Surface
Machined and Polished

Composition
SS304/SS316 Body, CI/CS Bonnet, Non-rising Stem or Rising Stem option

Application
Industrial pipelines, water supply, oil & gas, chemicals, steam control

Dimension (L*W*H)
Dependent on valve size; consult datasheet for specific dimension

Weight
Varies as per valve size (Typically 2kg to 80kg)

Color
Metallic Silver with colored handwheel

Material Grade
SS304/SS316, IS 210 FG 200/260, ASTM A216 WCB

Finish Type
Machined and Polished

Usage
Shut-off and flow control in pipelines

Standards Compliance
API 600, BS 1414, IS 14846

Body Test Pressure
Up to 30 bar/435 psi

End Connection
Flanged End - ASME B16.5

Valve Type
Gate Valve - Bolted Bonnet Type

Handwheel Material
Cast Iron/Epoxy Coated for durability

Operation
Manual (Handwheel) or Actuated (optional)

Packing Type
Graphite/PTFE packing

Leakage Class
Class VI (Bubble tight shut-off)

Face to Face Dimensions
As per ASME B16.10

Suitable Media
Water, Steam, Gas, Oil, Chemicals

Stem Material
Stainless Steel

Body Design
Outside Screw & Yoke (OS&Y), Rising or Non-Rising Stem

Pressure Rating
Class 150/300/600 per ANSI/ASA standard

Working Temperature Range
-29C to 425C (depending on material)

L&T MAKE SS GATE VALVE CS - CI Trade Information

Minimum Order Quantity
5 Units

Supply Ability
500 Units Per Month

Delivery Time
7 Days

About L&T MAKE SS GATE VALVE CS - CI

Discover the must-have L&T MAKE SS GATE VALVE CS - CI, designed for commanding performance in industrial environments. With a radiant stainless steel body (SS304/SS316), cast iron/carbon steel bonnet, and bolted bonnet construction, this top-tier gate valve is ideal for water, steam, gas, oil, and chemical pipelines. Enjoy wondrous versatility with options like rising or non-rising stem, manual or actuated operation, and a choice of graphite/PTFE packing. Corrosion resistant, heat resistant, and conforming to API 600, BS 1414, and ASME B16.5 standards, it's a wise purchase for reliable flow control.

Direction of Use and Special Features

Install the L&T MAKE SS GATE VALVE CS - CI to regulate or shut off flow in industrial pipelines-perfect for water, oil, gas, steam, and chemical applications. Apply on metallic and industrial surface pipelines for maximum efficiency. Special features include a robust bolted bonnet, radiant machine-polished finish, commanding handwheel for easy operation, bubble-tight shut-off, and versatile end connections. The product's excellent durability and heat resistance make it suitable for harsh operating environments.

Certifications and Packaging Details

Each L&T MAKE SS GATE VALVE CS - CI is delivered as a premium, certified product, adhering to API 600, BS 1414, IS 14846, and ASME B16.5 standards. Manufactured and shipped across the main domestic markets in India, it is securely packaged in industry-standard, protective packing to ensure safe transportation of all shipped goods. Trust that every valve arrives ready for immediate installation and reliable industrial performance.

FAQ's of L&T MAKE SS GATE VALVE CS - CI:

Q: How do I install the L&T MAKE SS GATE VALVE CS - CI in my pipeline system?

A: To install the valve, ensure compatibility with your pipeline's size and pressure rating, align the flanged ends, and secure them using ASME B16.5 standard bolts. Consult the product manual or datasheet for detailed instructions.

Q: What applications is this gate valve suitable for?

A: This gate valve is ideal for industrial applications such as water supply, oil and gas, chemical processing, and steam flow control, owing to its robust design and excellent corrosion and heat resistance.

Q: When should I choose a rising stem or non-rising stem configuration?

A: Rising stems are suitable when clear visual indication of valve position is important, while non-rising stems save space and are ideal for compact installations or where overhead clearance is limited.

Q: Where is the L&T MAKE SS GATE VALVE CS - CI primarily manufactured and delivered?

A: The valve is manufactured and supplied in India, available for quick delivery across major domestic markets with secure packaging.

Q: What special material features enhance the valve's durability and performance?

A: The valve features a stainless steel body (SS304/SS316), cast iron/carbon steel bonnet, epoxy-coated handwheel, and graphite/PTFE packing, ensuring superb durability, corrosion resistance, and reliable shut-off performance.

Q: How does the bubble-tight shut-off benefit my pipeline operation?

A: The Class VI bubble-tight shut-off eliminates leakage, ensuring maximum flow control and safety even under varying pressure and temperature conditions.
