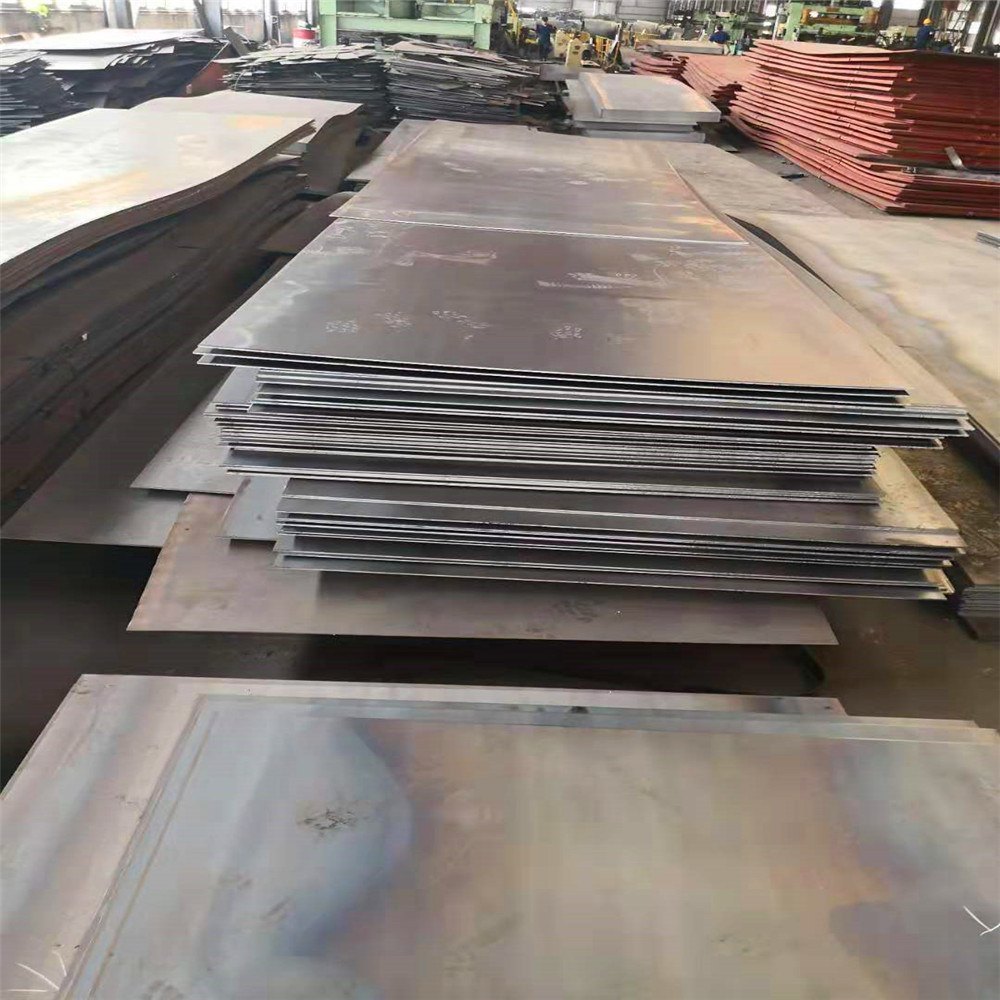

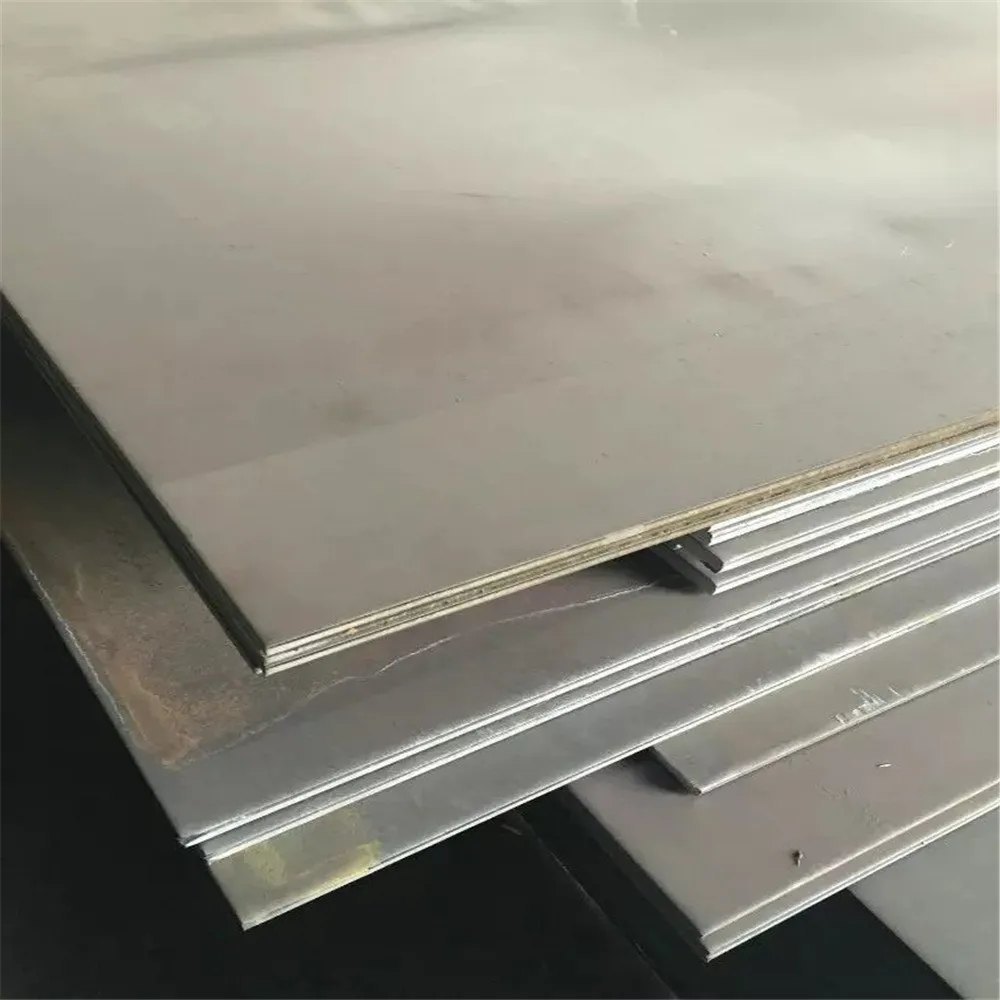

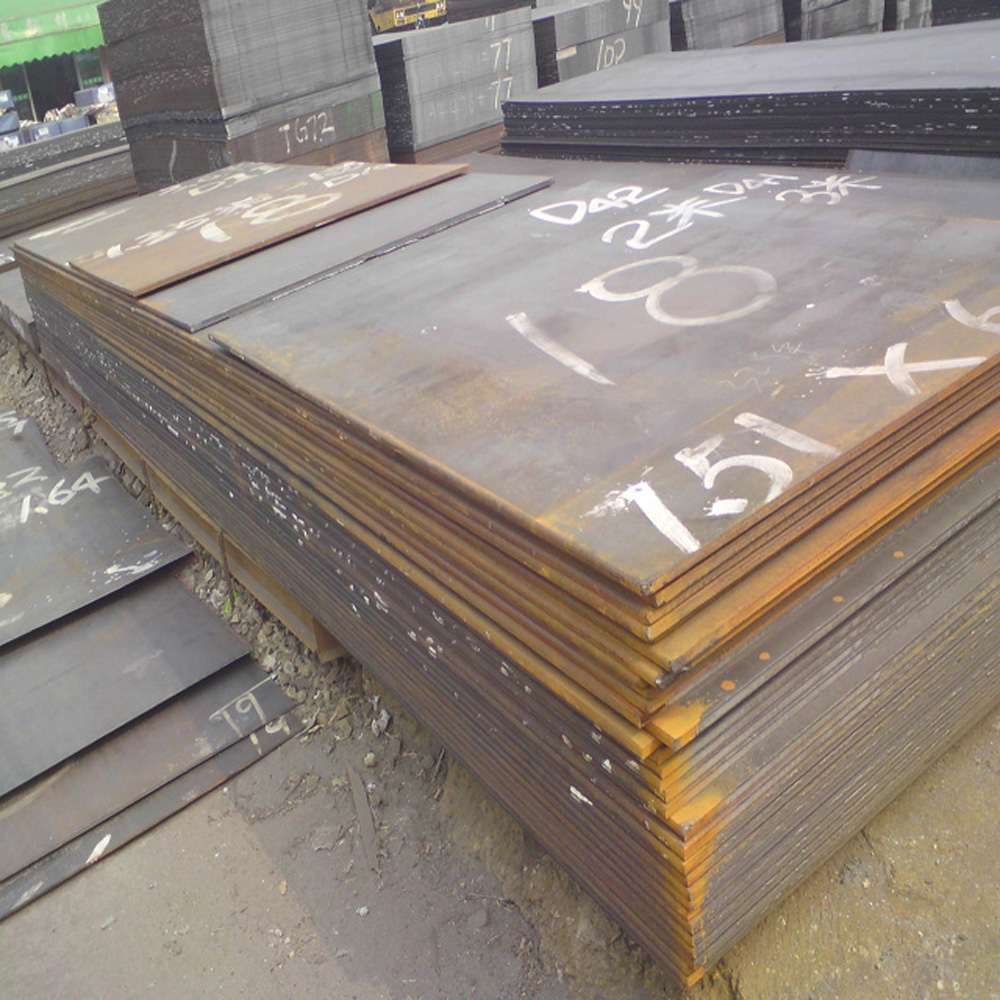

A36 PLATE
A36 PLATE
A36 PLATE
A36 PLATE
A36 PLATE
A36 PLATE

A36 PLATE

MOQ : 500 Kilograms

A36 PLATE Specification

  • Hardness
  • Yes
  • Product Form
  • Solid
  • Shape
  • Customized
  • Surface
  • Smooth
  • Application
  • Construction
  • Warranty
  • 1 Year
  • Usage
  • Industrial


A36 PLATE Trade Information

  • Minimum Order Quantity
  • 500 Kilograms
  • Delivery Time
  • 1 Days


About A36 PLATE

A36 Plate, AH 36 Steel Plate, AH 36 Steel Plates Stockists in Bangalore, AH36 Ship Building Steel Plate, AH36 Pressure Vessel Steel Plate, AH 36 Boiler Quality Plates Supplier in India.

Features of A36 PLATE
Well, if we talk about the features these plates offer then this is the most important thing not only for the manufacturer but the customer as well. These plates exhibit various features and properties which help in identifying whether the product is of high quality or not. The features include high tensile strength, corrosion oxidation resistance, durability, workability, weldability, formability, and long service life. All these features make these plates even more demanding for a wide range of applications worldwide.

Grade details:
AH36 is basically a high strength structural steel that is mainly used for shipbuilding. The steel is usually supplied to manufacturers as heavy plates, fabricated sections and surface treated plates. These plates are hard enough that they can easily sustain their quality for a long time at high and elevated temperature. With it, they have to capability to carry a heavy load. The grade offer products various features which makes it suitable for various shipping building applications and more. The grade has outstanding oxidation and pitting corrosion resistance property.

Testing and packaging details:
These plates after the manufacturing process come across various tests and inspections in order to check the quality and performance of these plates. The entire testing process takes place under the guidance and regulations of experts as per the industrial set up norms and regulations.

A36 PLATE  Sructural Steel Plate Supplier in Mumbai, ABS AH36 Quench & Tempered Plates Exporter, ABS Gr. AH 36 Plates, ASTM A131 AH36 Plates Stockists in India.

The tests include flaring test, flattening test, third-party inspection, ultrasonic test, radiography test, visual inspection and macro/micro test. Along with this, there are few more tests done like destructive test/ non-destructive test, chemical composition analysis and positive material identification test.

After the testing process, theaging process involved labeling of the product that includes the name ose plates are made ready for the packaging process. The packf the manufacturer, product name, length, size, and other information. All the information is labeled properly so that customers can easily identify the product. In the end, this AH 36 PLATE are packed in the high quality of packaging material like wooden cases, pallets, carton boxes that helps prevent rust and other unconditional damages. So, if you are also in need to buy these plates then it from us online at a reasonable price.


Standard Specification

Standards

ASTM A131, ASME SA131

Plate Quality

AH 36 (Dead Soft Quality)

Thickness

3/16" 4", 4-60mm

Width

48" 120", 2000 / 2500 / 3000mm

Length

96" 480", 6000 / 8000 / 10000 / 12000mm


Chemical Composition of AH 36 Plate

C Si Mn P S Cr Mo Ni Cu Cb V
0.18 0.10/0.50 0.90/1.60 0.035 0.035 0.20 0.08 0.40 0.35 0.02/0.05 0.05/0.10

Mechanical Properties of AH 36 Plate

Grade Re Rm Elongation
A50mm A200mm
MPa MPa % %
AH36 355 490/620 22 19
